Square bore heat insulator gasket divided centre .320" thick


No Brand
Part No: E9266
Square bore heat insulator gasket divided centre .320" thick comes with extended carb studs Edelbrock
Additional Notes:
Availability:In Stock
$86.70 (incl Gst)
$69.36 (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $60.31

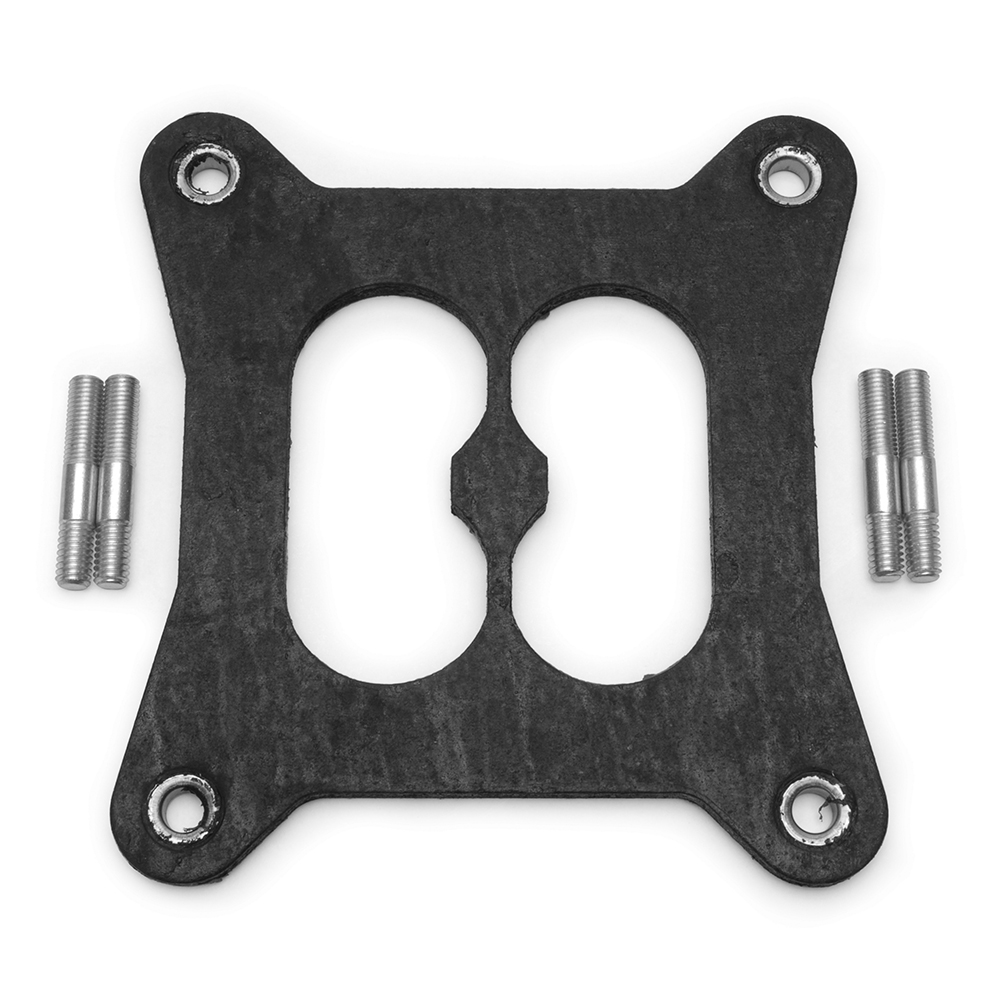

Edelbrock Heat Insulator Gasket for Divided 4150 Square-Bore

The Edelbrock Square-bore Heat Insulator Gasket #9266 is designed to prevent percolation on Edelbrock Performer Series Carburettors exposed to extreme under hood temperatures. This gasket features a divided center which will allow dual plane Performer and RPM manifolds to seal properly to the carburettor.
Prior to installation, check air cleaner-to-hood clearance to ensure that additional height of heat insulator gasket will not cause interference. Remove air cleaner and all attachments to the carburettor such as fuel line, throttle linkage, and vacuum lines. Be sure to note the position or tag each piece to facilitate re-installation. Remove the carburettor and set it aside, then remove the old base gasket and any additional plates, such as Edelbrock square-bore adapter #2732. Remove the short carb studs and install the longer studs. Install the #9266 heat insulator gasket directly against the manifold, then replace the carb and all other connections. Note that gasket #9266 is rigid enough to replace square-bore adapter plate #2732, if required.




Part #
Description
Back Order
Your Price
Qty

E1405
Carb 600 cfm performer series manual choke square bore satin
No
$867.73 (incl Gst)
Sorry there are no PDF documents for this product







Fitment

You Might also like...


Carb spacer 4150 / 4160 4 hole centre 1/2" tall wood fibre,


View Part No : E8723

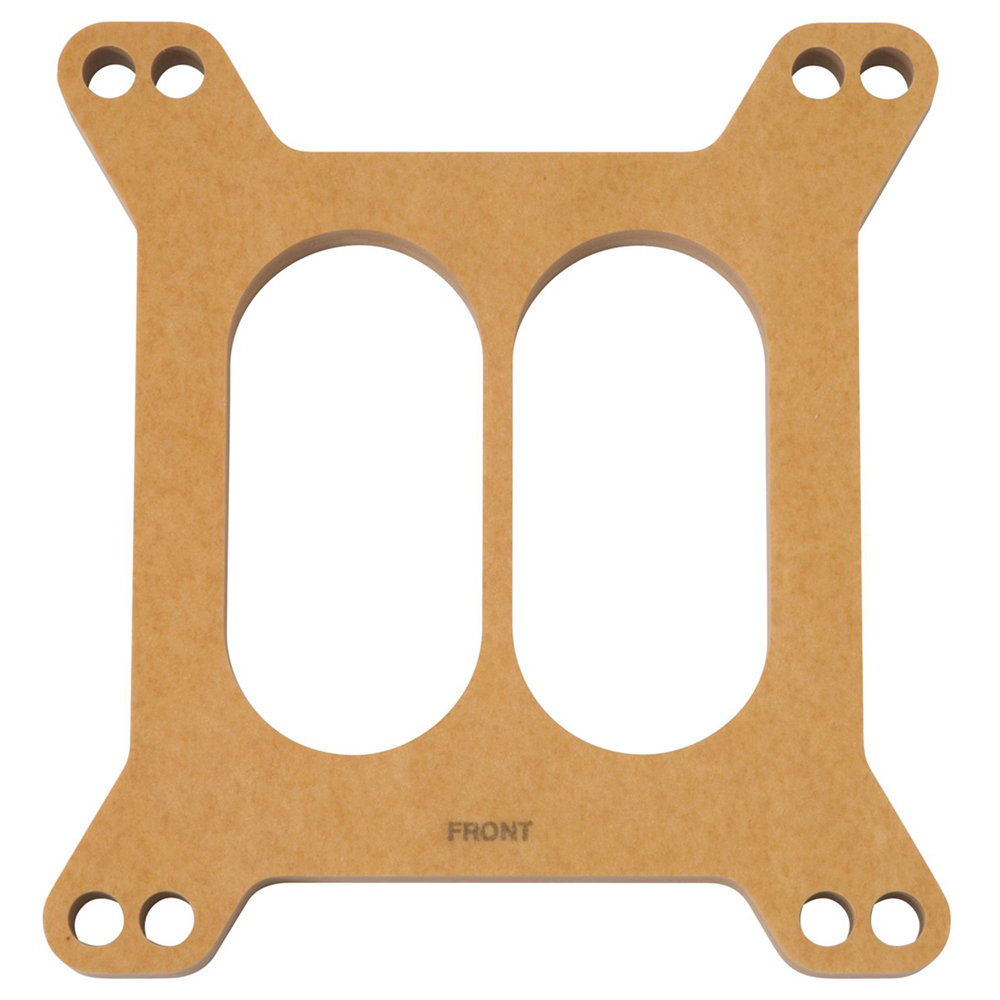

Carb spacer 4150 / 4160 divided centre 1/2" tall wood fibre,


View Part No : E8722

Edelbrock 8711 carburettor spacer

Carb spacer 4150 / 4160 4 hole centre 1" tall black phenolic


View Part No : E8711


Square bore heat insulator gasket open centre .320" thick co


View Part No : E9265
