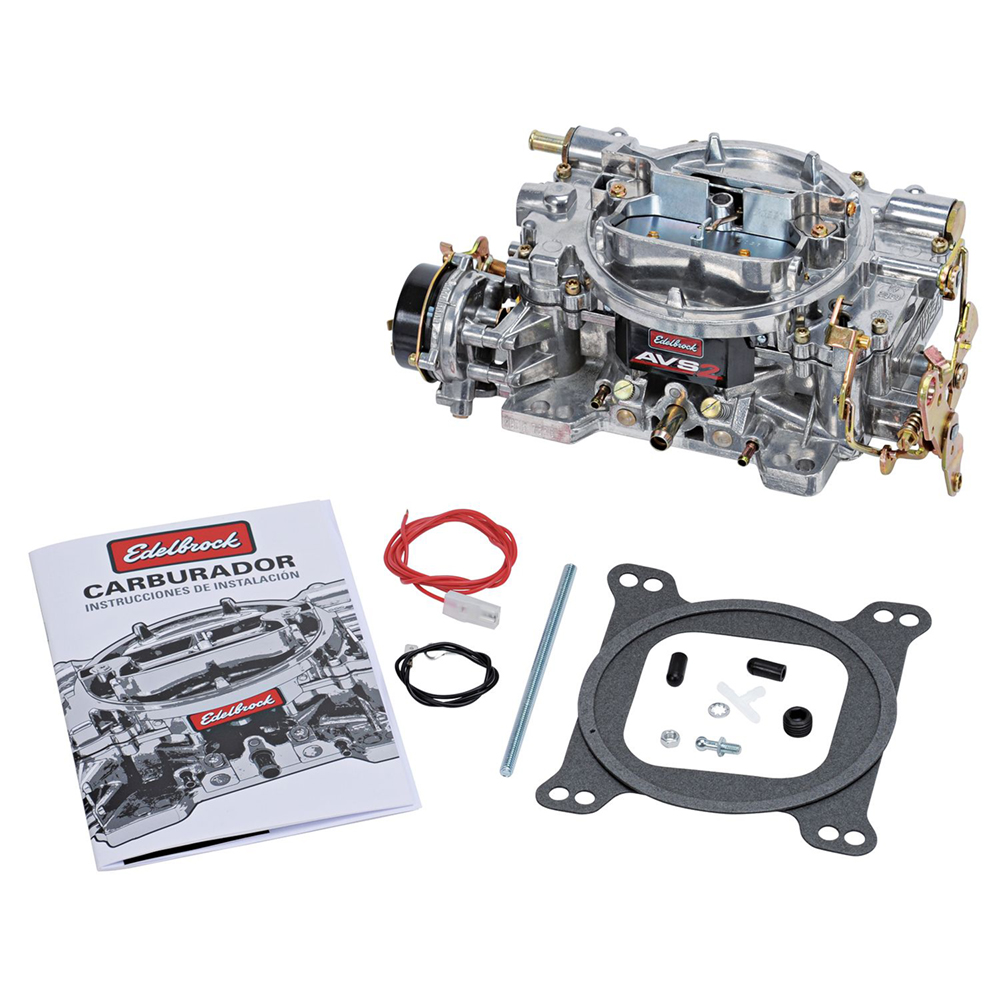

Carb 650 cfm AVS2 Thunder series annular flow primary booste


No Brand
Part No: E1906
Carb 650 cfm AVS2 Thunder series annular flow primary boosters, improves off idle and cruising performance electric choke adjustable secondary air valve Edelbrock 1906
Additional Notes:
Availability:In Stock
$1,001.12 (incl Gst)
$965.37 (incl Gst)

Qty:

Add To
Instock Quantity


  Your Price $839.45
The Edelbrock #1906 AVS2 Series 650 cfm carburetor is the next generation in Edelbrock carburettors. Designed and calibrated for optimum street performance in small-block and some big-block engines. The AVS2 features annular flow primary boosters with a new new calibration for improved off idle and cruising performance. The annular flow booster design delivers improved fuel atomization to eliminate flat spots that may be encountered when the carburetor transitions from idle to full throttle. Each annular flow booster features eight, equally spaced orifices to improve fuel metering from idle to the main circuit. The improved flow metering makes this carburetor ideal for use with a wide variety of small-block and big-block engines with either dual- or single-plane intake manifolds. The Edelbrock #1906 AVS2 includes both timed and full vacuum ports for ignition advance. It comes with: Metering Jets – Primary .101, Secondary .098; Metering Rods – .070 x .037; Step-Up Spring – orange (5" Hg). Use our Carburetor Stud Kits #8008 or #8024 if needed. Match with a variety of manifolds that include Edelbrock Performer, Performer EPS, RPM Air-Gap, Performer RPM, Torker II or other brands of similar design.





Part #
Description
Back Order
Your Price
Qty

ARP200-2401
ARP200-2401
Carb stud kit 5/16 x 1.700 black oxide ARP 200-2401
No
$39.56 (incl Gst)
E2324
E2324
Fender cover Edelbrock Racing logo 22 x 34" length, PVC foam
No
$100.36 (incl Gst)
E8133
E8133
Fuel line kit dual feed for 1 AVS Thunder series carb with b
No
P.O.A. (incl Gst)
MRG19
MRG19
Universal throttle return dual spring kit (includes bracket)
No
$36.96 (incl Gst)
MRG3704MH
MRG3704MH
Blanking plug caps for carb vacuum fittings (kit includes 4
No
$5.01 (incl Gst)
E1948
E1948
Carb calibration kit for AVS2 series #1905, 1906 Edelbrock
No
P.O.A. (incl Gst)
Sorry there are no PDF documents for this product







Fitment

You Might also like...


Throttle bracket Chev SB BB universal adjustable black powde


View Part No : E8031


Throttle return spring kit universal


View Part No : E8005


Carb stud kit 5/16 x 1.750" (pack of 4 studs) Edelbrock 8024


View Part No : E8024

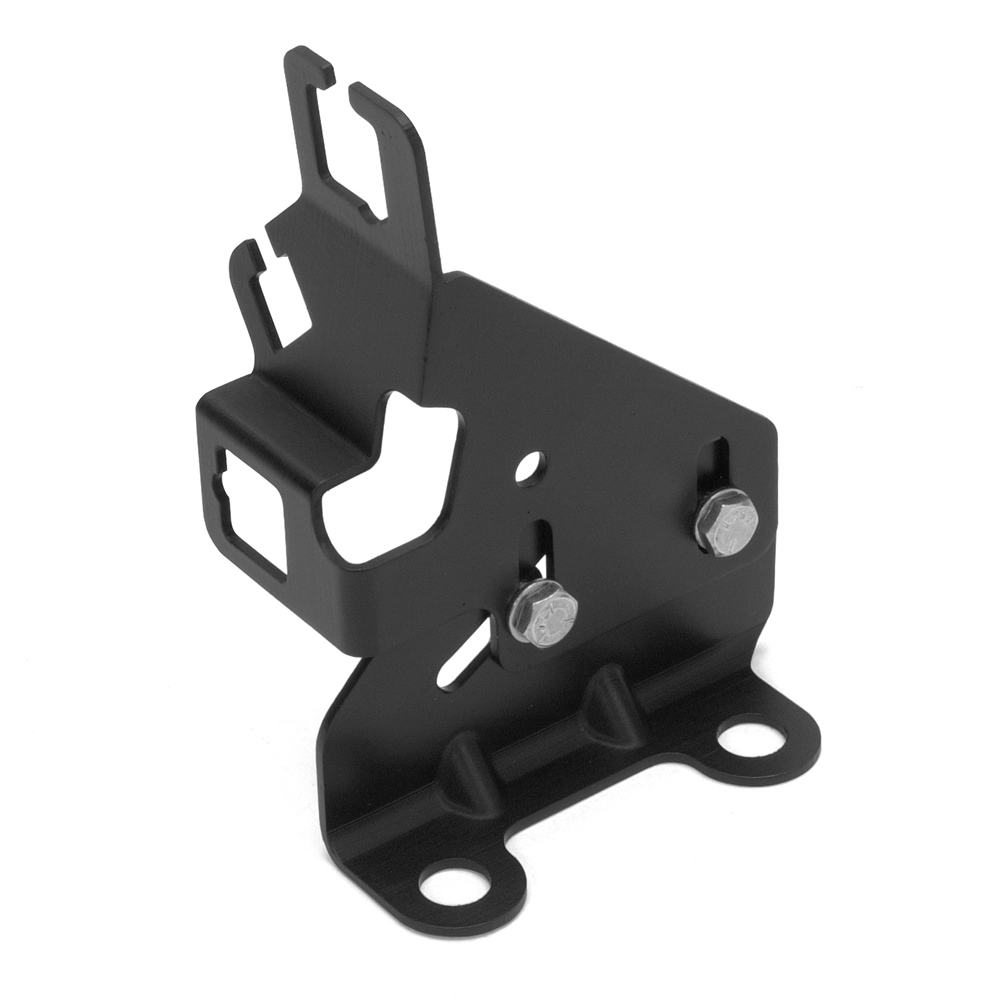

Throttle bracket Chev SB vortec & E-tec adjustable for both
